Crystal Engineering nVision Reference Pressure Recorder
£2,175.60
£1,813.00
Availability:
In stock
SKU
Crystal Engineering nVision Reference Pressure Recorder
nVision Reference Recorder
nVision Reference Pressure Recorder: The Ultimate Solution for Precision, Durability, and Portability
Your All-in-One Calibration Tool
Accurate enough to replace a traditional deadweight tester, rugged enough to withstand harsh environments, and portable enough to use anywhere, the nVision reference pressure recorder is essential for professionals who demand the best.

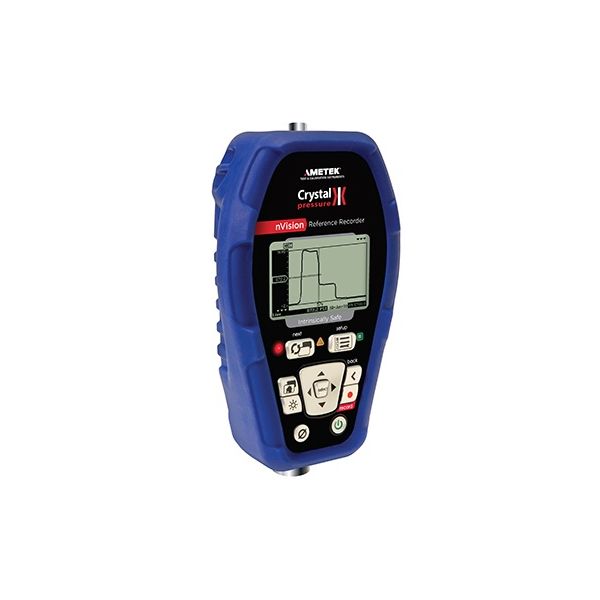

The Ametek Crystal nVision Reference Recorder is an accurate, rugged, portable reference pressure logger. It can record up to 500 000 data points at a maximum rate of ten readings per second via two modules. Offering switch, voltage, current, and temperature measurements, the Ametek Crystal nVision Reference Recorder supports gauge/ absolute pressure ranges up to 15 000 psi/ 1000 bar/ 1000 MPA. It is temperature compensated between -20°C and +50°C enabling it to deliver a differential pressure accuracy of 0.025%.
nVision Reference Recorder
- Unmatched Accuracy and Versatility: The Reference Pressure Recorder logs gauge and absolute pressure data up to 15,000 psi / 1000 bar, along with differential pressure measurement boasting up to 0.025% reading accuracy. Additionally, the recorder supports switch, voltage, current, and temperature measurements, making it a comprehensive solution for all your calibration needs.
• Rugged Design for Extreme Conditions: Built to withstand the toughest environments, the nVision Pressure Recorder is rugged enough to sit in 3 feet of water, ensuring it performs reliably even in challenging conditions.
• Large Data Storage and Fast Sampling Rate: With the ability to store up to 500,000 data points and a sampling rate of 10 readings per second from two modules, the Reference Pressure Recorder is ideal for capturing detailed and comprehensive data sets.
• User-Friendly Interface and Advanced Functionality: The Reference Pressure Recorder displays live data graphically on its screen, eliminating the need for a PC to monitor readings in real time. However, when connected to a PC, you can view live readings or export data to tamper-proof digital records, ensuring that your calibration data remains secure and traceable.
• Temperature Compensation for Accurate Results: The recorder compensates for temperature effects from -20 to 50°C, ensuring that your measurements remain accurate across a wide range of environmental conditions.
• Calibration Certificate Included: Every Reference Pressure Recorder comes with a calibration certificate from an A2LA accredited laboratory, complete with test data at five different temperatures. This certification guarantees the accuracy and reliability of your device, giving you confidence in your measurements.
• Replaceable CPF Adapter for Extended Life: To enhance durability and reduce wear and tear, the Reference Pressure Recorder features a replaceable CPF adapter, shifting everyday wear to a component that can be easily replaced. This design choice extends the lifespan of the device, ensuring long-term reliability and value.
For more information, please contact us.
digital-pressure-calibrator-nvision-bar-data-sheet-us.pdfWrite Your Own Review
